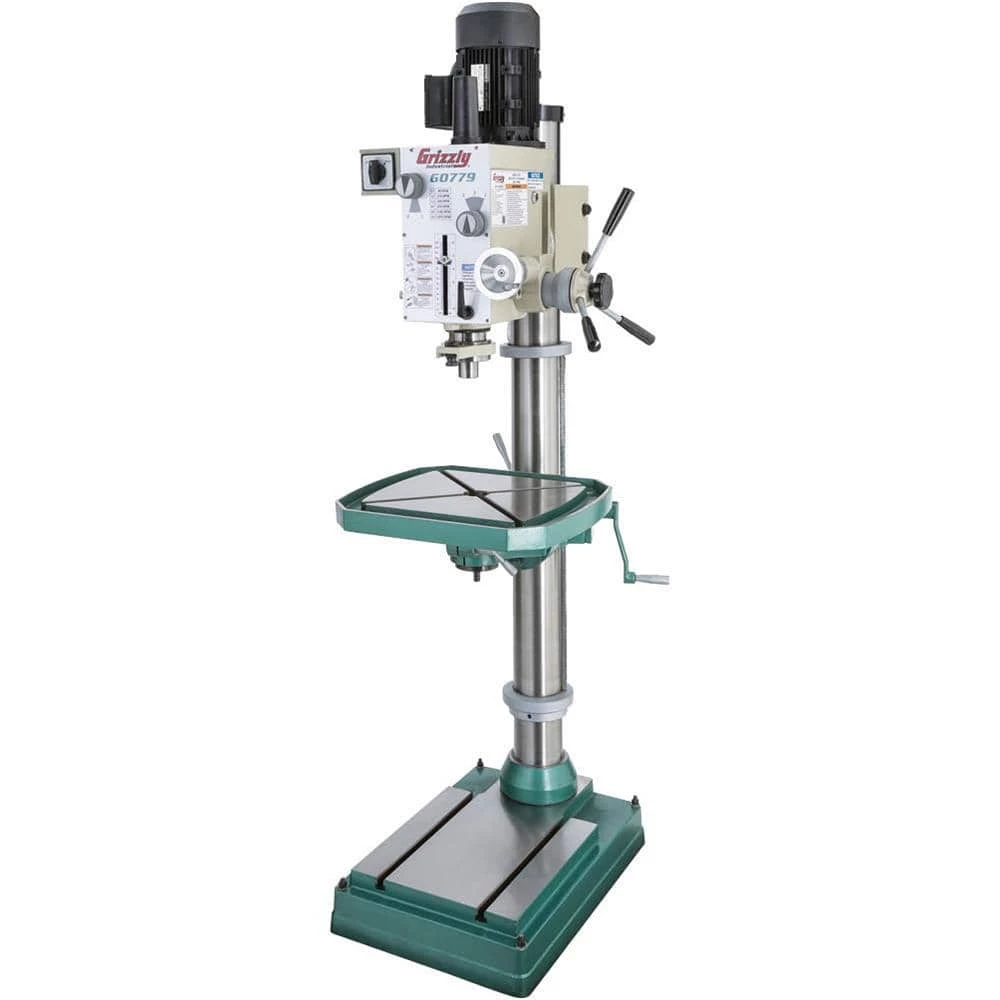

Heavy-Duty Floor Model Gearhead Drill Press by Grizzly Industrial
Original price was: $569.00.$98.99Current price is: $98.99.
Powered by a 2 HP motor for a seamless performance
Comes with 1-year manufacturer warranty
Works at a maximum speed of 1,970 RPM
- 100% High Quality Guarantee
- Nature-friendly materials, for a better planet.
- We take quality seriously.
- Expertly Sourced, Quality Guaranteed

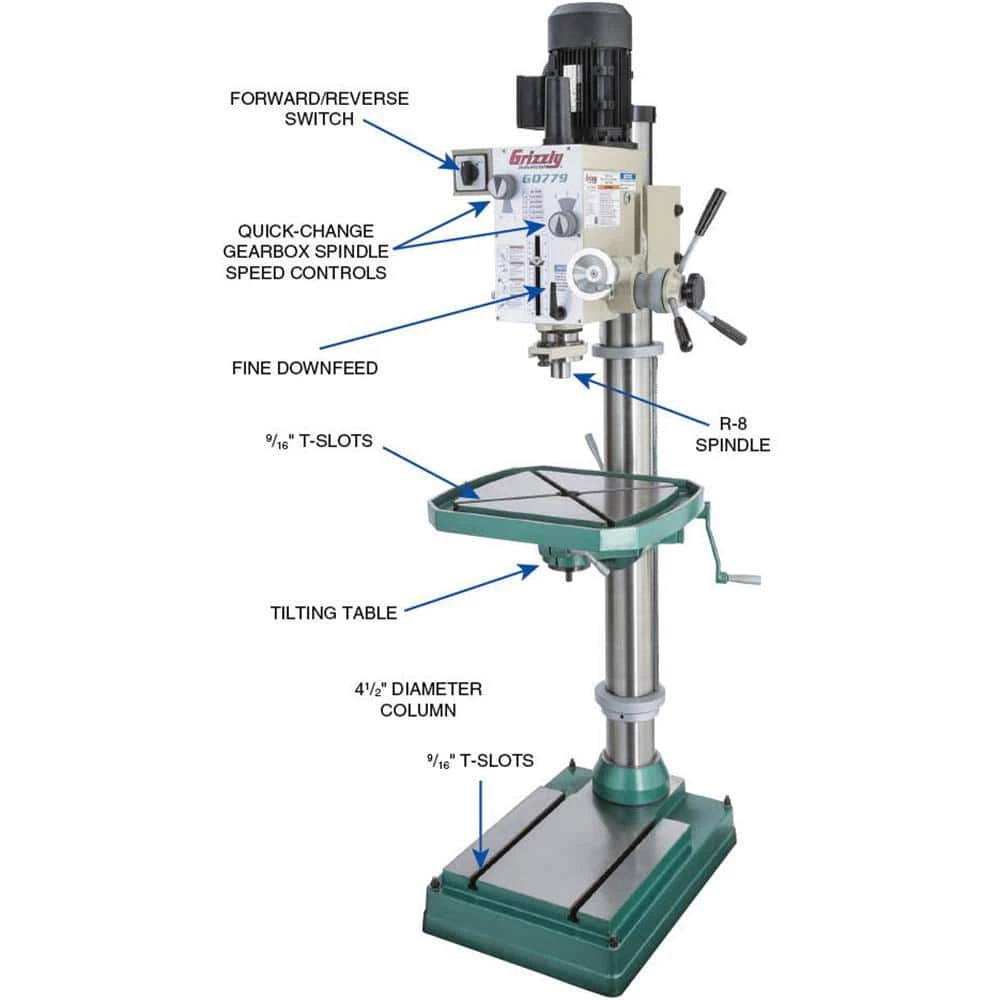

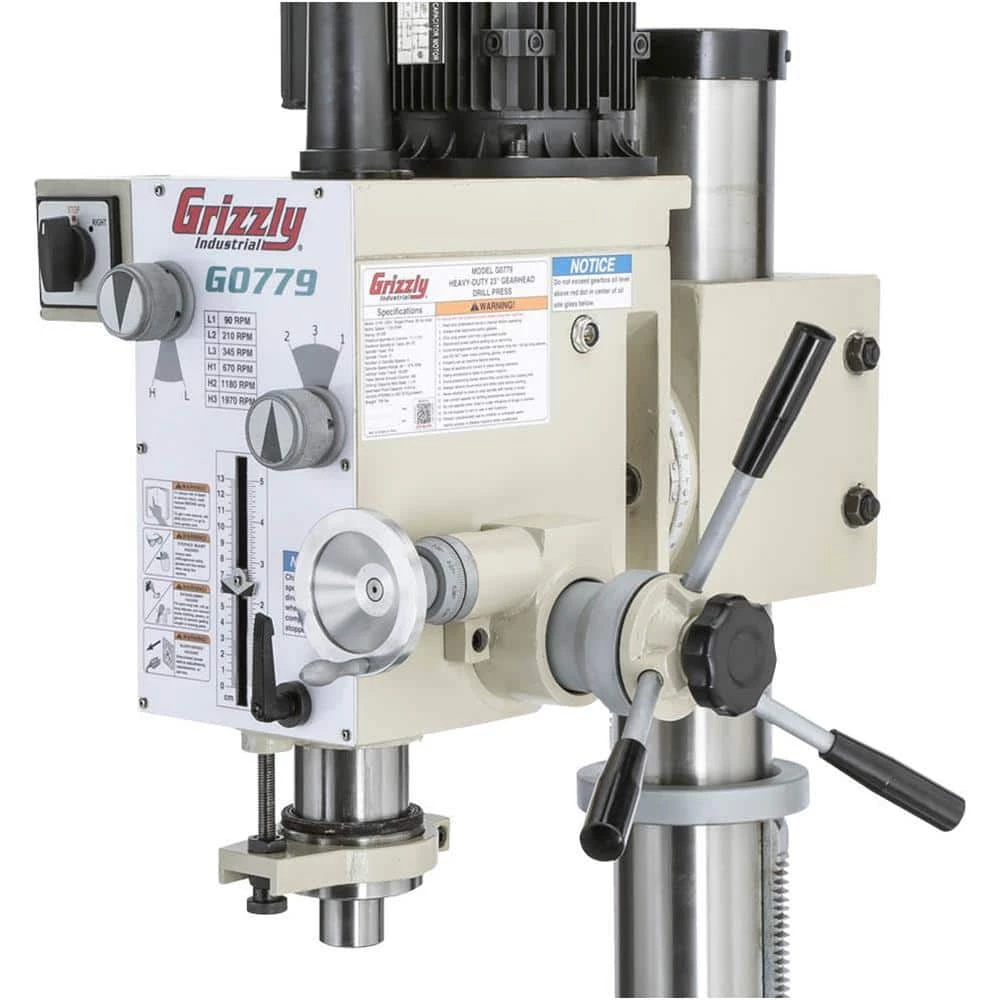

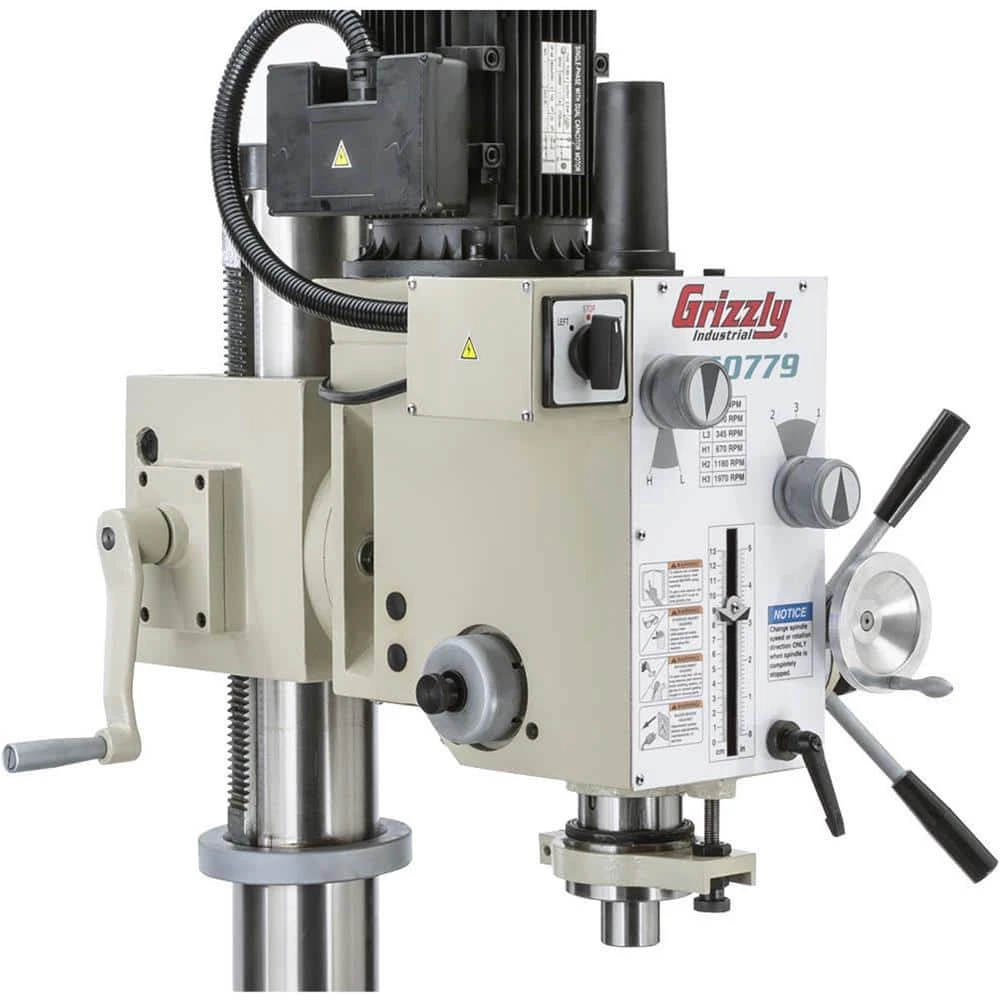

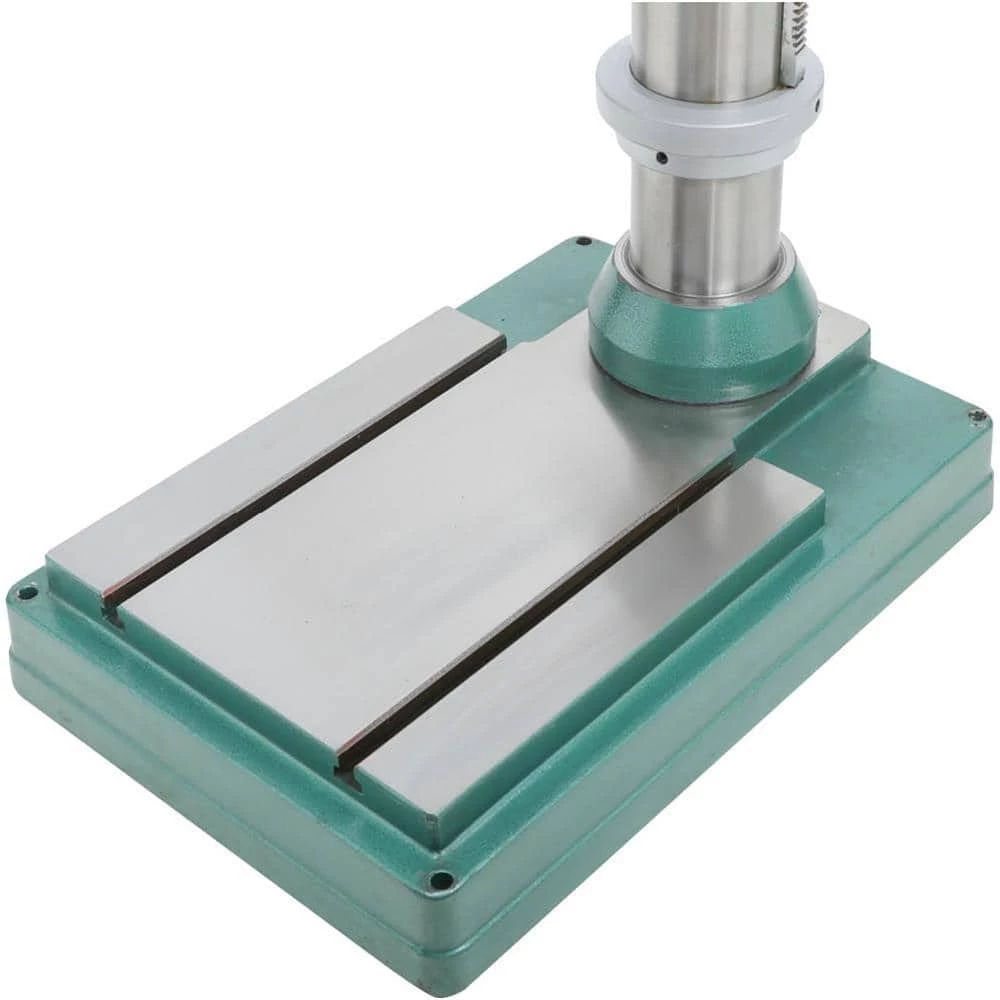

In the world of industrial drill presses, newcomer G0779 is a heavy hitter with a 2 HP, 220-Volt, 8.6 Amp motor, a massive 2-15/16 in. quill, a 4-1/2 in. column diameter, and a 1-1/2 in. drilling capacity in cast iron or 1-1/4 in. steel. The geared head is equipped with a forward/reverse switch, 6 spindle speeds from 90 RPM to 1970 RPM, convenient quick-change gearbox controls for spindle speed, and an R-8 spindle taper. With a swing of 23-3/8 in. and a spindle travel of 5 in. this machine can handle whatever comes its way. The head tilts 90° left and right, and has a vertical travel of 10-1/2 in., while the 19-5/8 in. x 18 in. table tilts 60° left and right with a vertical travel of 24-3/8 in. Both head and table are mounted on independent rack and pinions for ultimate positioning versatility. 2-9/16 in. T-slots are located on both table and base for added usability. The table swivels 360° around its center, and both table and head swivel 360° around the column.
- R-8 spindle
- 60° left, 60° right table tilt
- Drawbar thread size: 7/16 in. to 20 in. L: 17-3/4 in.
- 23-3/8 in. swing

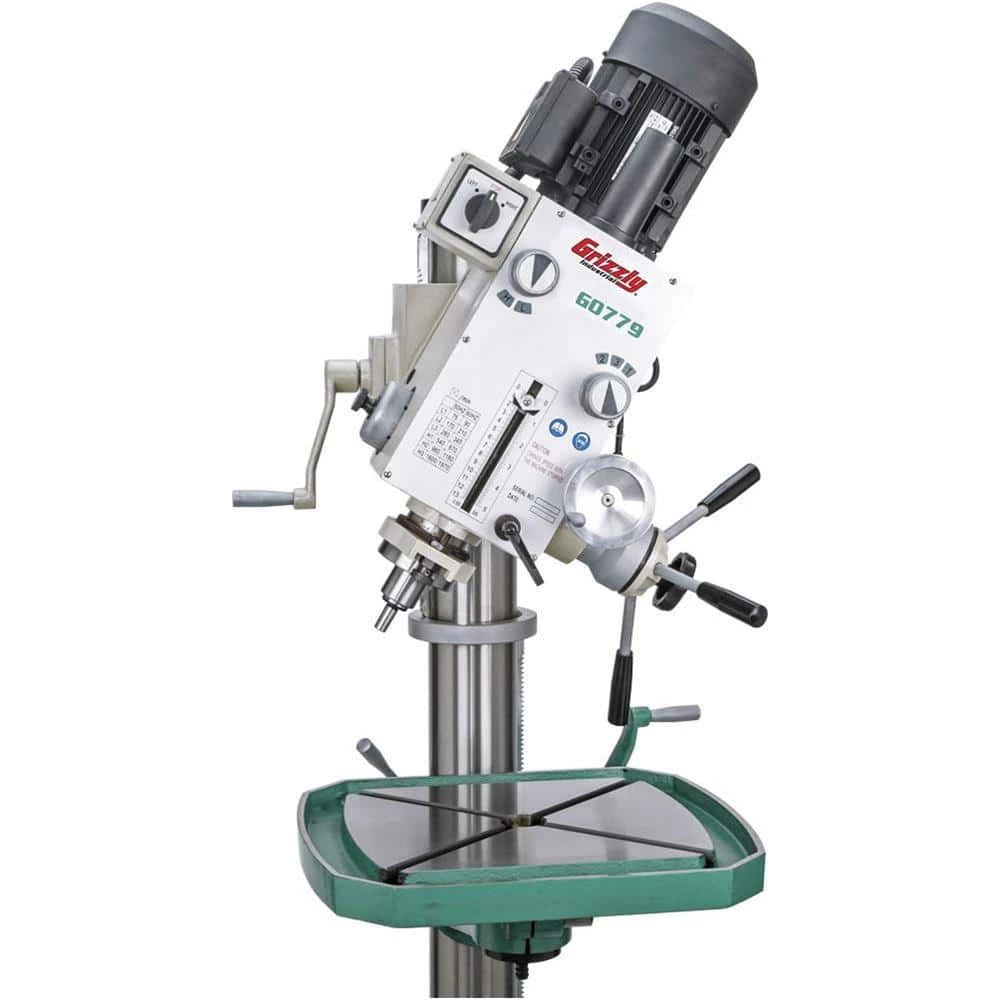

- 90° left, 90° right head tilt
- 6 speeds
- 5 in. spindle stroke

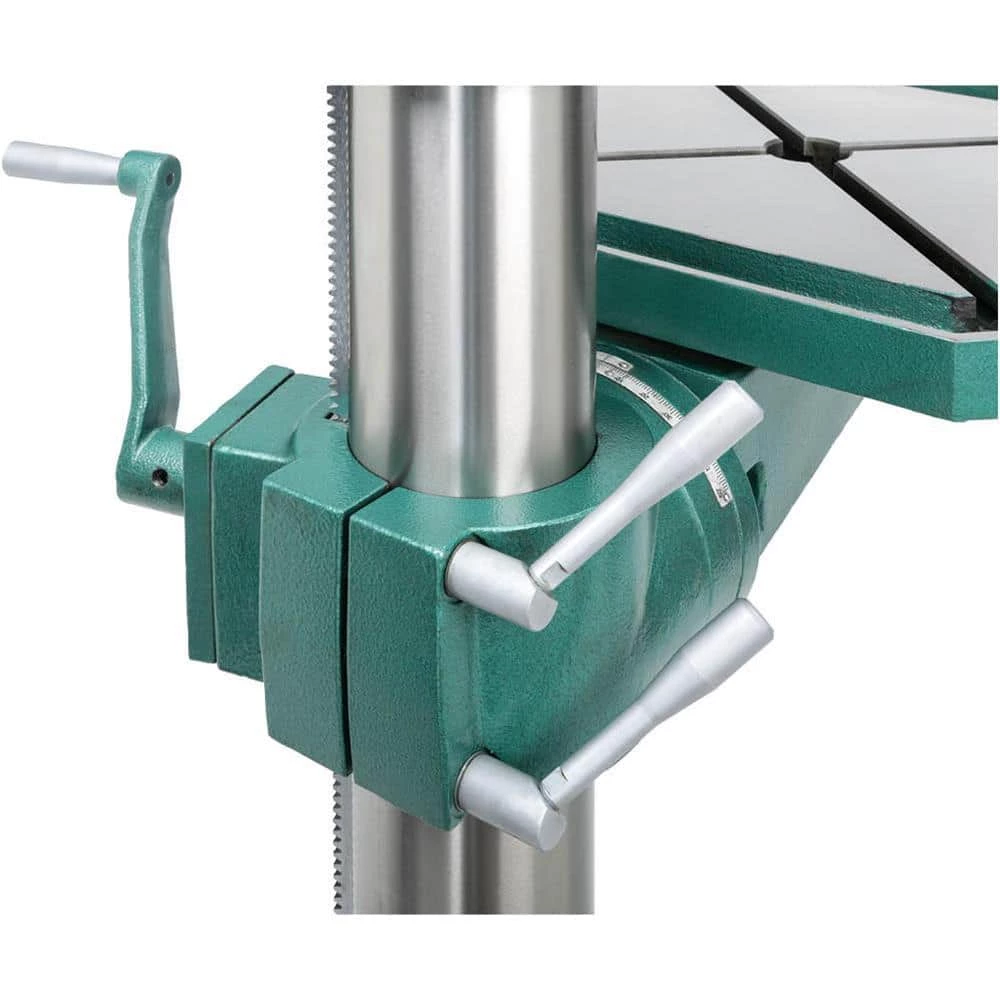

- Crank handle operated rack-and-pinion vertical table and head casting movement
- Table equipped with lock levers
- 2 HP motor
| Amperage (amps) | 8.6 A |
|---|---|
| Returnable | 90-Day |
| Product Height (in.) | 72 in |
| Product Depth (in.) | 29 in |
| Chuck Capacity (in.) | 1-1/4 In. |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | ISO Certified |
| Voltage (volts) | 220 V |
| Tools Product Type | Power Tool |
| Swing Distance (In.) | 23 in |
| Spindle Travel (in) | 5 in |
| Product Weight (lb.) | 790 lb |
| Bench & Stationary Tool Type | Drill Press |
| Power Tool Features | 360-Degree Swivel |
| Portability | Floor |
| Number of Speeds | 6 |
| Minimum Speed (rpm) | 90 |
| Maximum Speed (RPM) | 1970 RPM |
| Included | No Additional Items Included |
| Horsepower (HP) | 2 hp |
| Cord Length (ft.) | 6.5 |
| Condition | New |
| Color Family | Multi-Colored |
| Product Width (in.) | 30 in |
