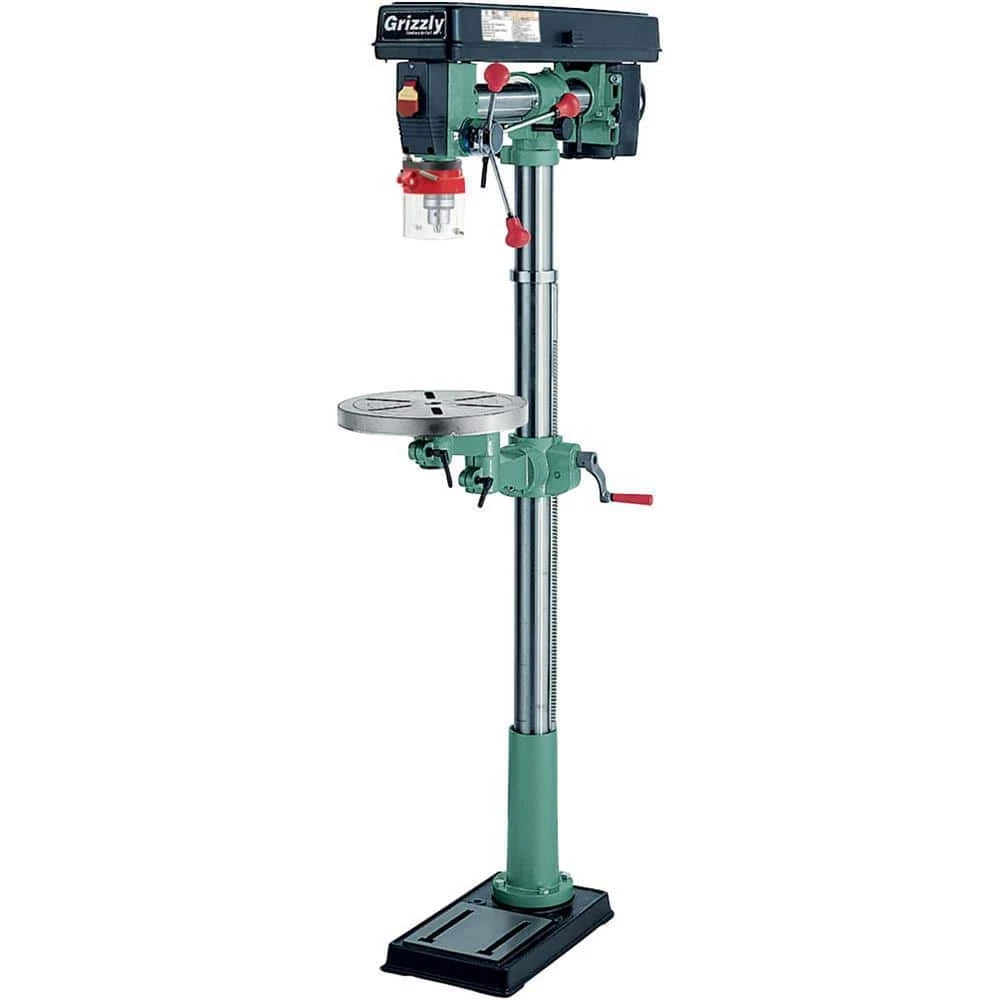

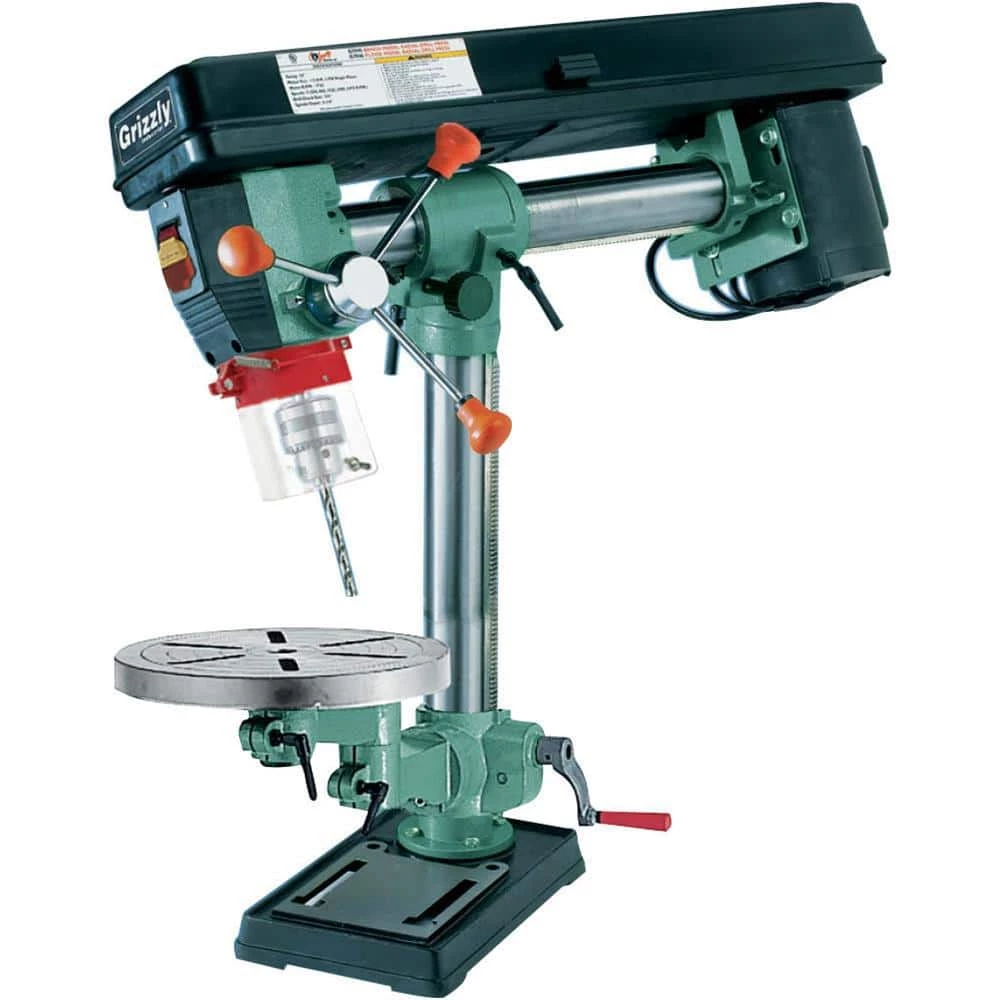

The G7946 34″ Floor Radial Drill Press boasts a 1/2 HP motor that smoothly powers the five spindle speeds ranging from 550 – 3000 RPM. The headstock can be tilted 45° left, 90° right, and slid forward or backward over the column allowing you full adjustability. To make sure that you get the best use of the table, the drill press features rack-and-pinion elevation controls-adjustable 24-1/2″ vertically, 90° tilt (left and right) and is capable of 360° rotation around the column. The G7946 can easily drill holes through plastic, fiberglass, and composites and has a maximum capacity to drill through a half inch of steel without bogging down. The JT33 keyed drill chuck is fitted to the JT-33 spindle taper and offers up to 3-1/4″ of travel. The chuck accepts drill bits from 1/16″-5/8″. You can set the adjustable threaded depth stop for predetermined and repeatable drilling. Like all Grizzly drill presses, the G7946 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.) Made in an ISO 9001 Factory CSA certified
- 1/64 in.-5/8 in. chuck
- Table has lock levers
- Table and base are cast iron
- Radial design allows angle drilling
- 5 speeds
- 1/2 HP motor
- Cushioned grip quill handles
- Crank handle operated rack and pinion vertical table movement
- Threaded depth stop
