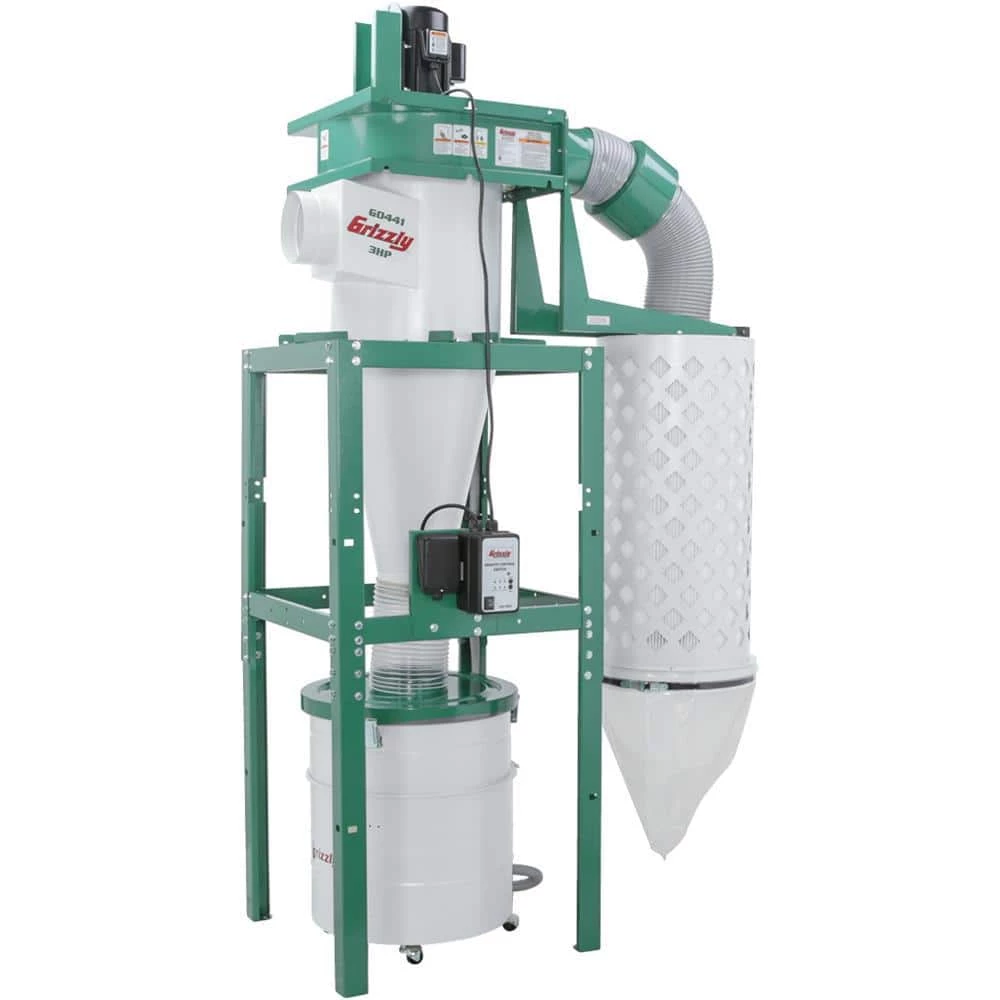

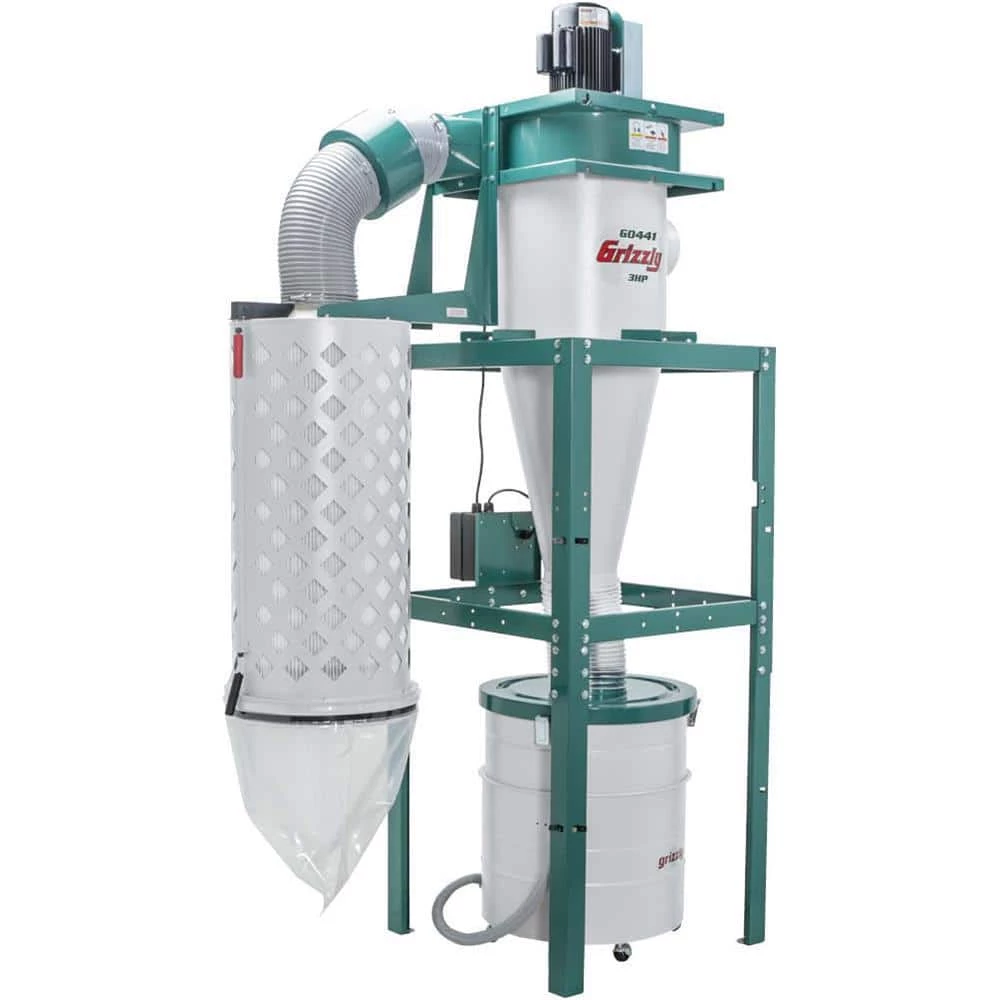

3 HP Cyclone Dust Collector by Grizzly Industrial
Original price was: $597.00.$94.99Current price is: $94.99.
3 HP single-phase motor runs reliably with minimal maintenance
Base constructed of pre-formed steel for durability
Pleated cartridge filter facilitates efficient air movement
- 100% High Quality Guarantee
- Nature-friendly materials, for a better planet.
- We take quality seriously.
- Expertly Sourced, Quality Guaranteed

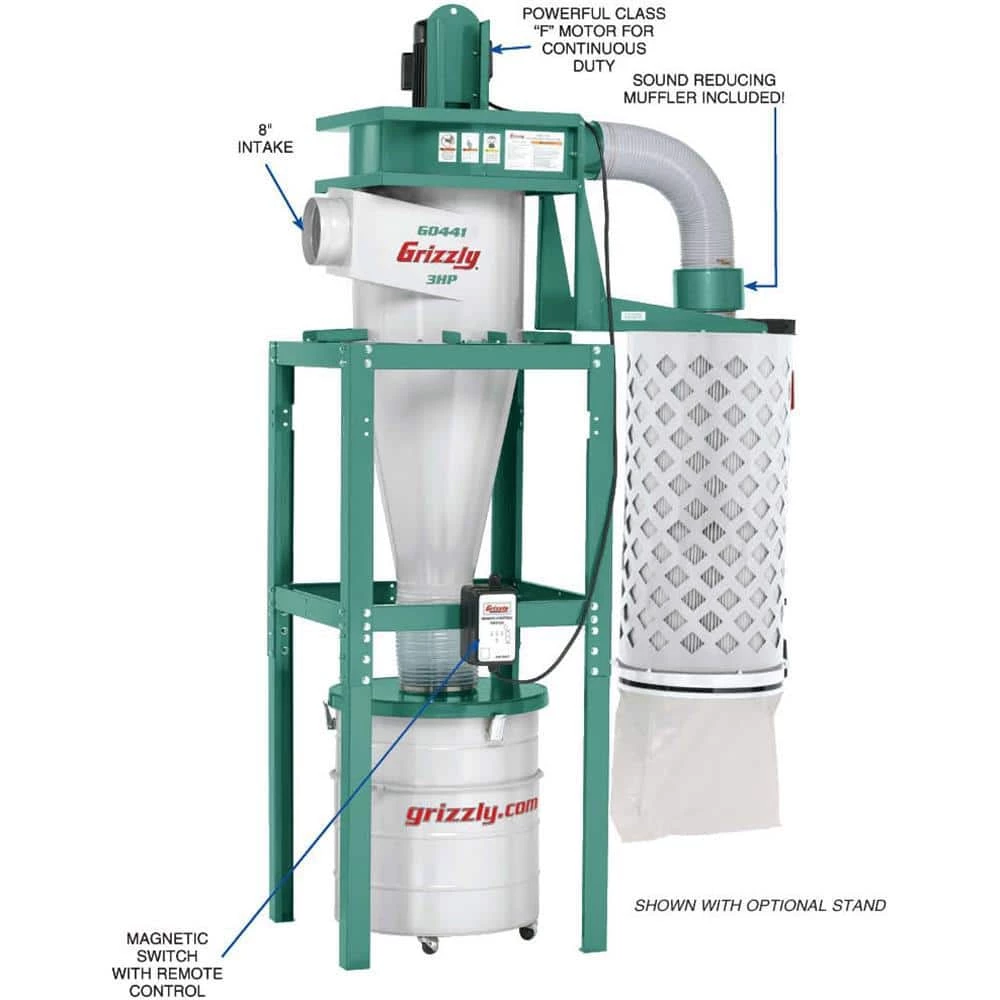

Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 55 Gal. steel drum. The fine dust travels past the 15-1/2 in. Dia impeller and is then trapped by a cartridge filter made of spun-bond polyester that filters 99.9% of particles from 0.2 microns to 2 microns in size. The cartridge filter is pleated to provide 113 sq. ft. of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance. Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets. Other features include: a vertical motor support for reduced vibration, thick walled 11-Gauge steel blower housing, 14-Gauge steel cyclone body, 360° blower rotation for easy connection to a duct system, TEFC Class “F” motor and a magnetic switch with remote control device. The optional steel legs and support frame (H7509) also make setup quick and easy.
- BIA certified cartridge filter
- Blower and barrel rotate 360° for inlet and outlet positioning
- Casters mounted on collection drum for easy moving
- Clear disposable plastic collection bags
- Gentle brush cleaning mechanism inside cartridge filter

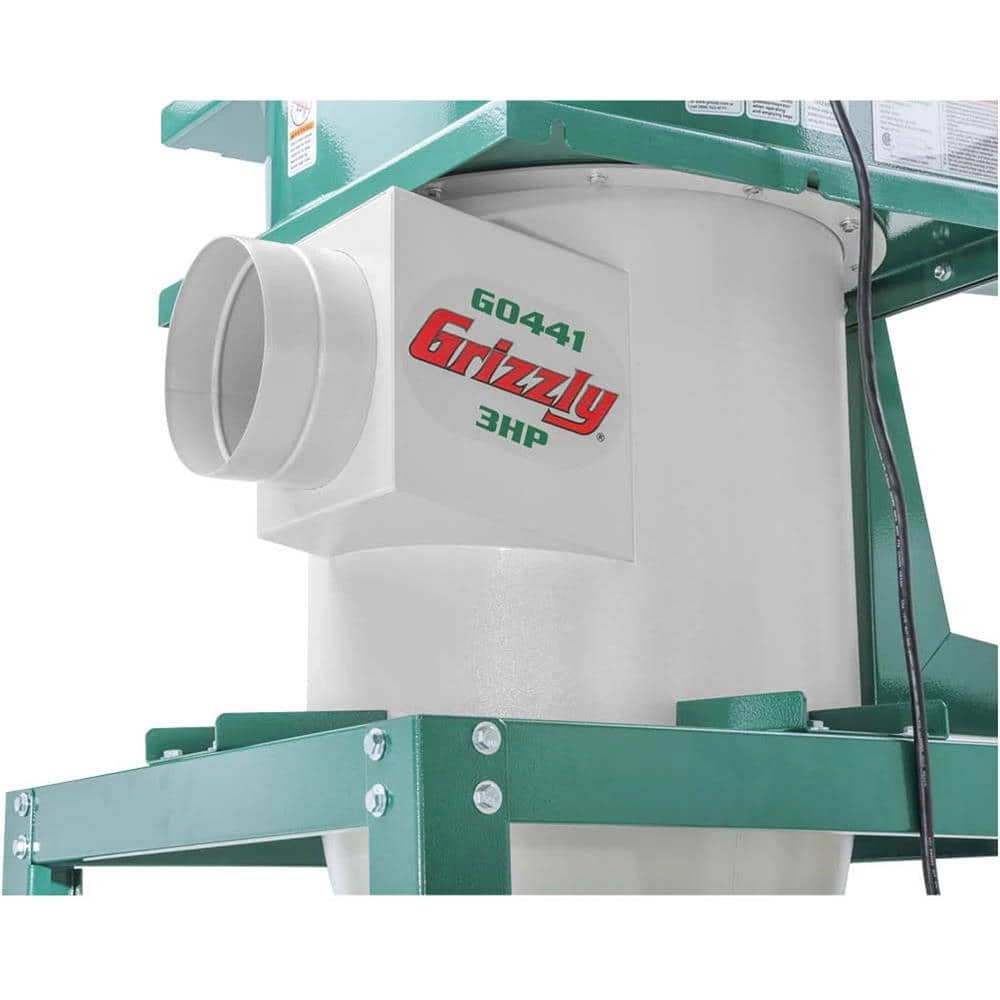

- Ramped inlet maximizes dust flow into collection drums
- Reinforced motor mount

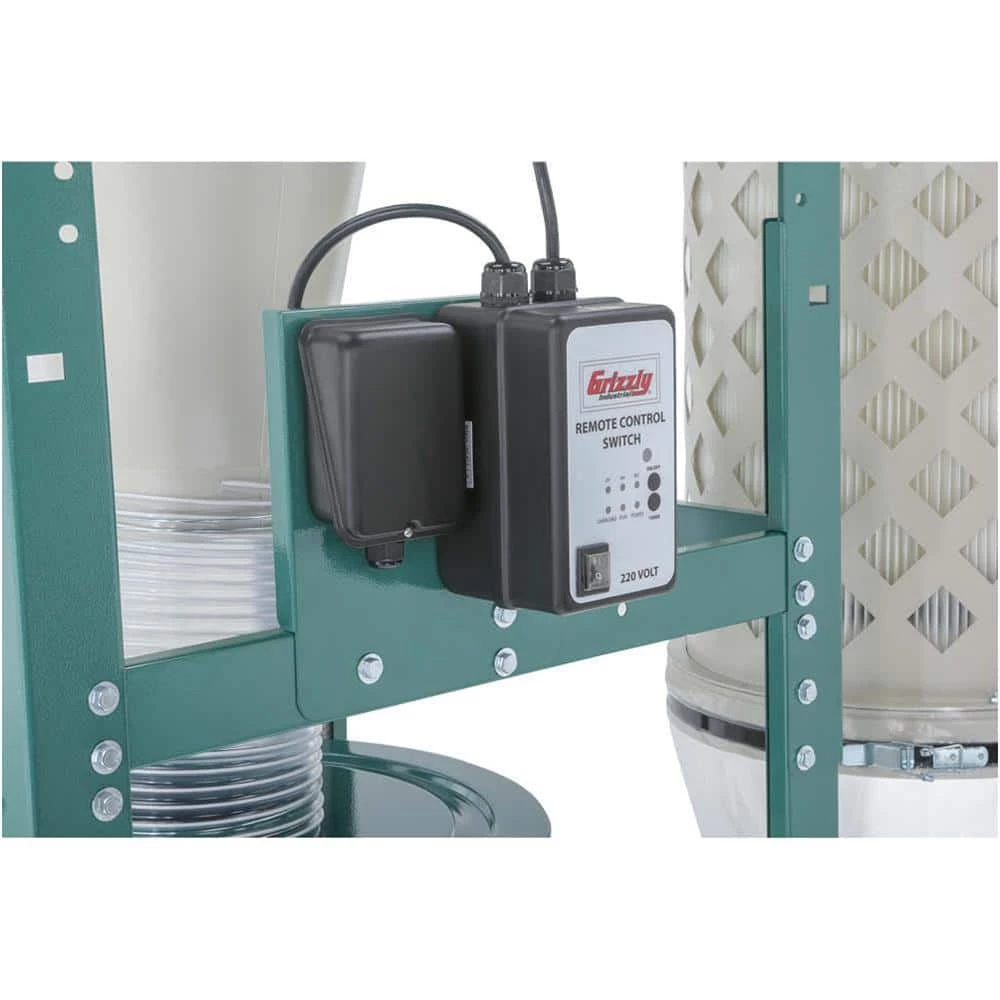

- Remote controlled magnetic switch
- Wall mountable blower design
- 14-Gauge steel stand available as an option
| Bag Capacity/Dry Volume (cu. ft.) | 7.4 cu ft |
|---|---|
| Product Weight (lb.) | 347 lb |
| Product Height (in.) | 109 in |
| Product Depth (in.) | 60.25 in |
| Interior Hose Diameter (In.) | 8 in |
| Manufacturer Warranty | 1 Year |
| Tools Product Type | Power Tool |
| Returnable | 90-Day |
| Power Tool Features | No Additional Features |
| Color Family | Multi-Colored |
| Maximum Air Flow Capacity (CFM) | 1654 CFM |
| Horsepower (HP) | 3 hp |
| Filter Type | Cartridge |
| Dust Collector Type | Two Stage |
| Dust Collection Product Type | Dust Collector |
| Decibel (Sound) Rating | 85 dBA |
| Product Width (in.) | 38.5 in |
