12 in. 7-1/2 HP 3-Phase Compact Sliding Table Saw by Grizzly Industrial
Original price was: $464.00.$98.99Current price is: $98.99.
- 100% High Quality Guarantee
- Nature-friendly materials, for a better planet.
- We take quality seriously.
- Expertly Sourced, Quality Guaranteed

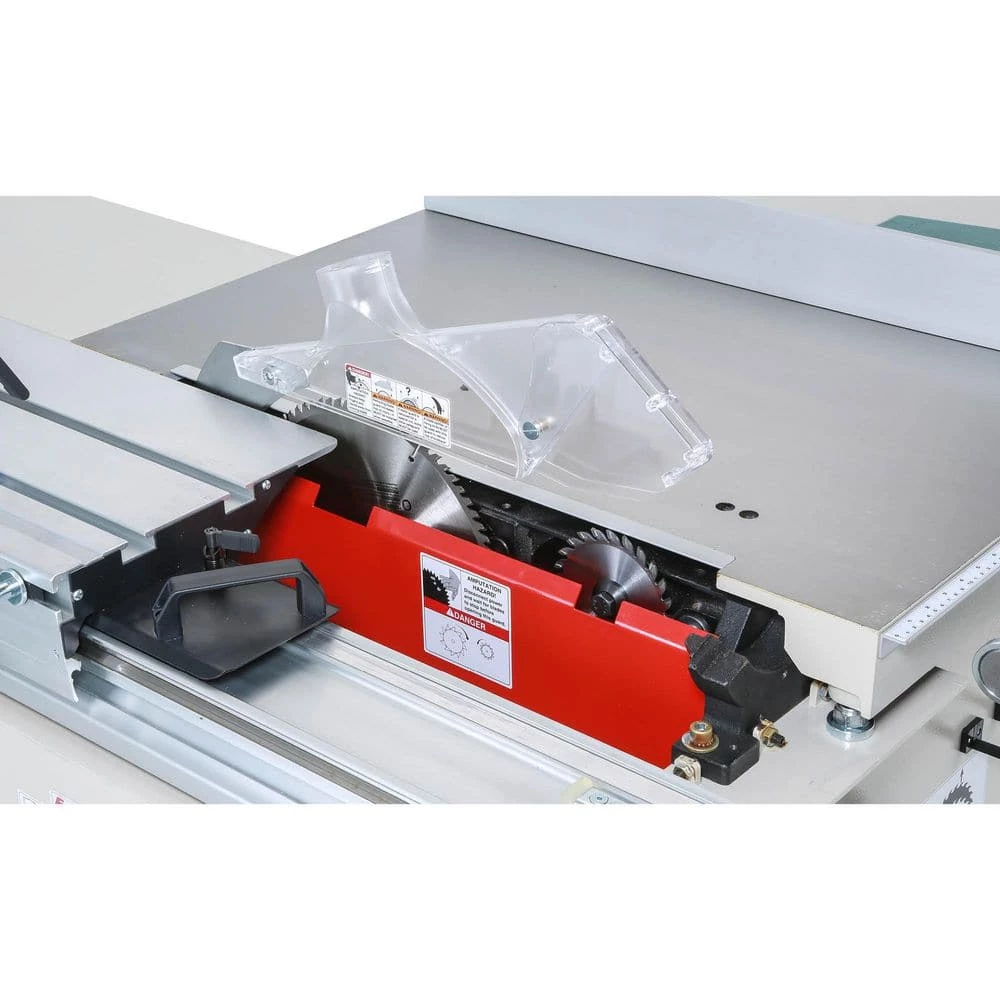

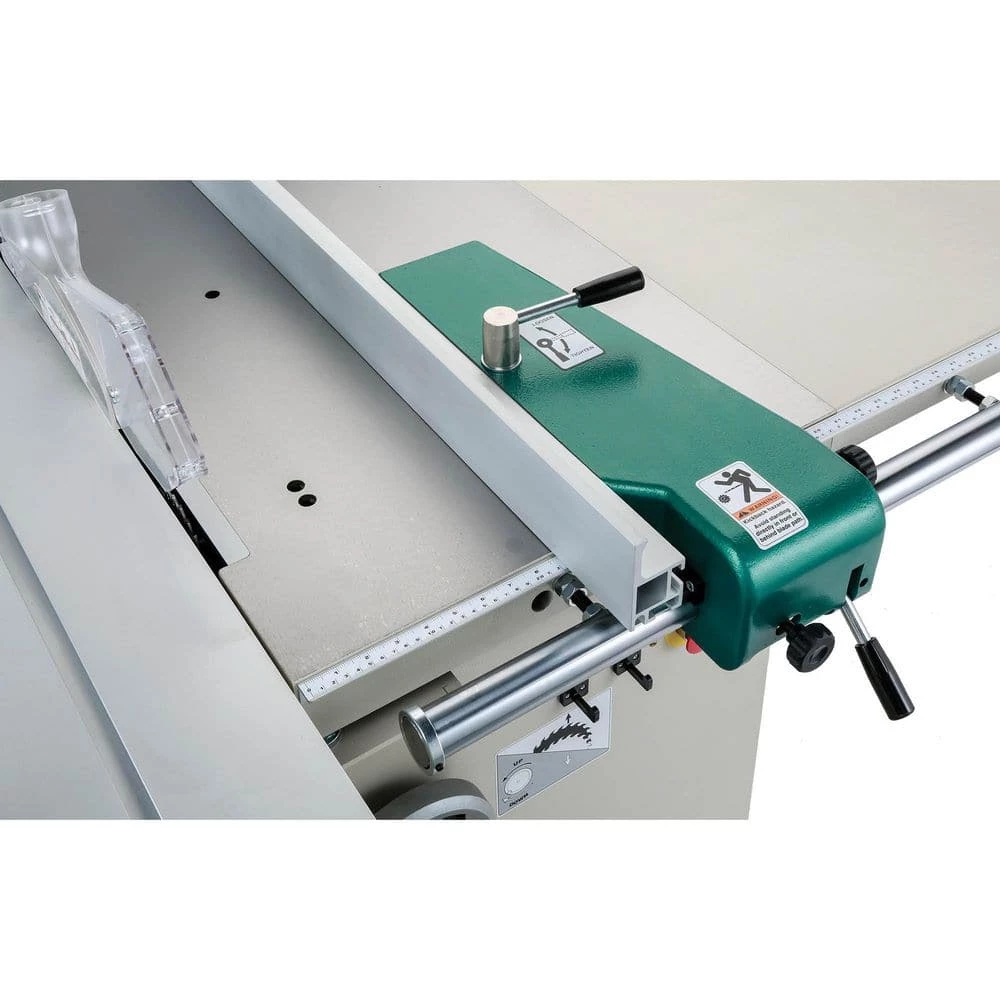

A compact and high horsepower sliding table saw. A sliding table saw can also take up a lot of room. What to do if you’re pressed for shop space. The space-saving G0820 12 in. 7-1/2 HP 3-Phase Compact Sliding Table Saw, measures 118 in. x 90 in. . This slider will allow you to crosscut sheets up to 63 in. x 101-1/2 in. and rip panels as wide as 33 in. . Don’t let the smaller size fool you; this 7-1/2 HP workhorse has all of the user-friendly features you’d expect from an industrial-duty sliding table saw. These features include a scoring blade that eliminates tear-out, a miter fence with adjustable flip-stops, dust ports above and below the blade, riving knife, a standard rip fence and a clamping hold-down system for the sliding table. For production ripping and crosscutting, every shop needs a sliding table saw-and the G0820 just might be the perfect fit. Like all Grizzly table saws, the G0820 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
- Motor: 7-1/2 HP, 220-Volt/440-Volt* (prewired for 220-Volt), 3-phase, 20 Amp/10 Amp
- Rip capacity: 33 in.
- Crosscut capacity: 63 in.
- Blade tilt: 0°-45°
- Max. depth of cut @ 90°: 3-5/16 in.
- Max. depth of cut @ 45°: 2-3/8 in.
- Main table size with extensions: 40 in. x 68 in. sliding table size: 63 in. x 12-1/4 in. floor-to-table height: 34-1/4 in. main blade size: 12 in. Main blade arbor: 1 in. main blade speed: 4000 RPM scoring blade size: 4-3/4 in. (120 mm) scoring blade arbor: 20 mm scoring blade speed: 8000 RPM number of dust ports: 2 dust port size: 2-1/2 in. , 5 in. footprint: 35 in. W x 45 in. L overall dimensions: 118 in. W x 90 in. D x 45 in. H Approx. shipping weight: 996 lbs.
| Amperage (amps) | 15 A |
|---|---|
| Manufacturer Warranty | 1 Year |
| Product Weight (lb.) | 828 lb |
| Returnable | 90-Day |
| Rip Capacity - Left (in.) | 33 in |
| Rip Capacity - Right (in.) | 33 in |
| Tools Product Type | Power Tool |
| Certifications and Listings | ISO Certified |
| Blade Diameter (in.) | 12 in |
| Portability | Stationary |
| Product Depth (in.) | 118 in |
| Product Height (in.) | 45 in |
| Product Width (in.) | 90 in |
| Work Table Height From Floor (in.) | 34.25 in |
| Work Table Length (in.) | 35.25 in |
| Work Table Surface (in.) | 35.25 in x 21.5 in |
| Power Tool Features | No Additional Features |
| Maximum Table Tilt - Right (degrees) | 0 ° |
| Bench & Stationary Tool Type | Table Saw |
| Cuts Through | Wood |
| Blade Location | Centered |
| Color Family | Multi-Colored |
| Condition | New |
| Construction Material | Cast Iron |
| Cord Length (ft.) | 0 ft |
| Cordless/Corded | Corded |
| Depth Control | Adjustable |
| Maximum Table Tilt - Left (degrees) | 0 ° |
| Dust Collection Method | 2.5 in. Dust Port |
| Horsepower (HP) | 7.5 hp |
| Included Accessories | Rip Fence |
| Maximum Cut Depth at 45 Degrees (in.) | 2.375 in |
| Maximum Cut Depth at 90 Degrees (in.) | 3.318 in |
| Maximum Speed (RPM) | 4000 RPM |
| Work Table Width (in.) | 21.5 in |
