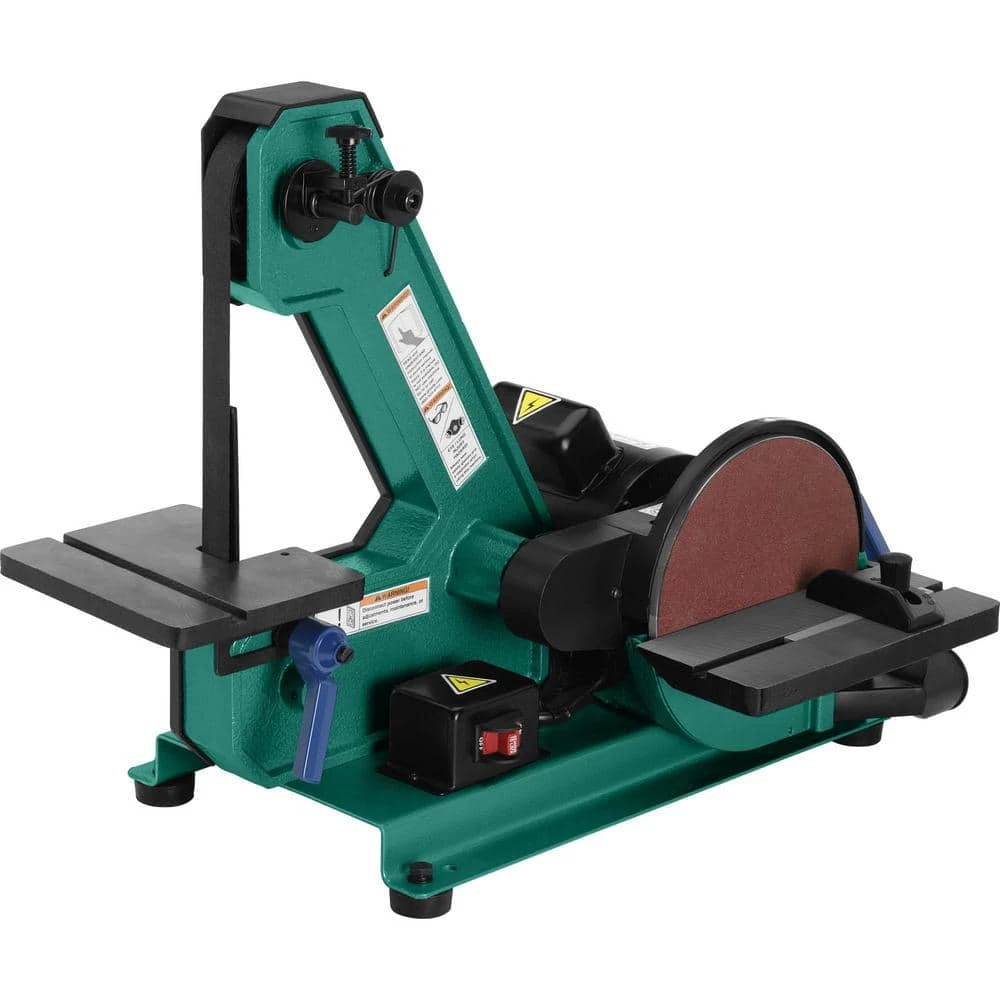

1 in. x 42 in. Belt/8 in. Disc Combo Sander by Grizzly Industrial
Original price was: $299.00.$94.99Current price is: $94.99.
- 100% High Quality Guarantee
- Nature-friendly materials, for a better planet.
- We take quality seriously.
- Expertly Sourced, Quality Guaranteed
H8192 1 in. x 42 in. Belt / 8 in. Disc Combo Sander A perfect match for your bandsaw or scroll saw. The H8192 1 in. x 42 in. Belt / 8 in. Disc Combo Sander will shape and smooth right to the line. Great for touching up work on your small jobs that need a little attention. A 1/3 HP, capacitor-start induction motor powers the 1 in. x 42 in. belt and 8 in. disc through any sanding chore and the cast-iron tilting tables give you the flexibility you demand. Features single-knob tracking to get your belt back on track. The two 2 in. dust ports easily connect to your dust collection system. For a full range of replacement belts for the H8192, shop here. Replacement PSA sanding discs are available in a variety of grits. Like all Grizzly combo sanders, the H8192 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty. ) SPECIFICATIONS Motor: 1/3 HP, 110V, single-phase, 4A Sanding belt size: 1 in. x 42 in. Sanding belt speed: 3000 FPM Belt platen size: 1 in. x 4 in. Belt sanding table size: 6 in. x 7 in. Disc diameter: 8 in. Disc backing type: PSA Disc speed: 1725 RPM Disc sanding table size: 4 in. x 10 in. Table tilt: 0-45° Number of dust ports: 2 Dust port sizes: 2 in. Footprint: 11 in. x 18-1/4 in. Overall dimensions: 19-1/2 in. W x 26 in. D x 14-1/2 in. H Approximate shipping weight: 64 lbs.
- Dual cast-iron tables with miter slots
- Both tables tilt to 45°
- Two 2 in. dust ports

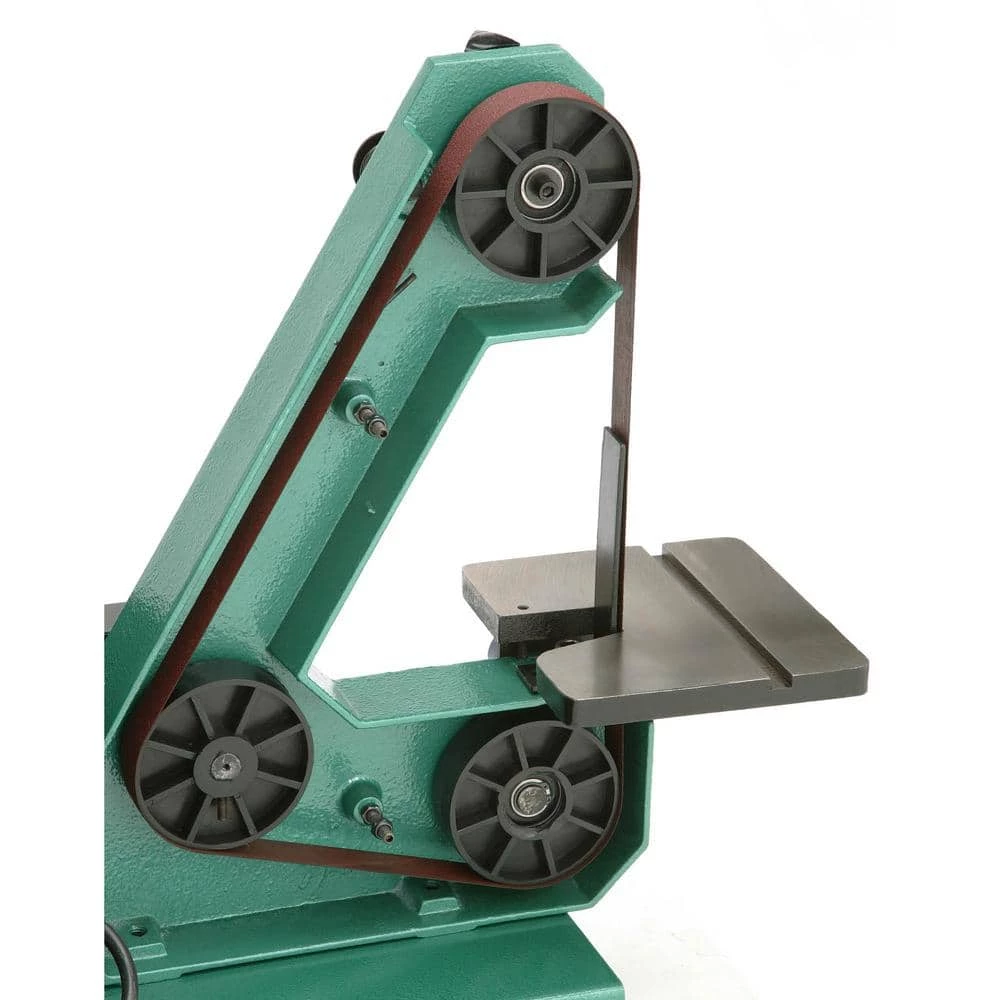

- Single-knob belt tracking
- Includes 80 grit belt and disc
| Amperage (amps) | 4 A |
|---|---|
| Tools Product Type | Power Tool |
| Product Height (in.) | 14.5 in |
| Product Depth (in.) | 19.5 in |
| Disc table width (in.) | 4 |
| Disc table length (in.) | 10 |
| Belt width (in.) | 1 |
| Belt length (in.) | 42 |
| Manufacturer Warranty | 1 YEAR |
| Certifications and Listings | No Certifications or Listings |
| Voltage (volts) | 110 V |
| Variable Speed | No |
| Returnable | 90-Day |
| Bench & Stationary Tool Type | Sander |
| Reconditioned | No |
| Product Weight (lb.) | 58.5 lb |
| Power Tool Features | Dust Collection |
| Portability | Bench |
| Minimum belt sanding speed (ft./min.) | 3000 |
| Maximum belt sanding speed (ft./min.) | 3000 |
| Maximum Speed (RPM) | 1725 RPM |
| Dust collection type | Port |
| Cord Length (ft.) | 0 ft |
| Condition | New |
| Color Family | Green |
| Product Width (in.) | 26 in |
